E3 Tooling

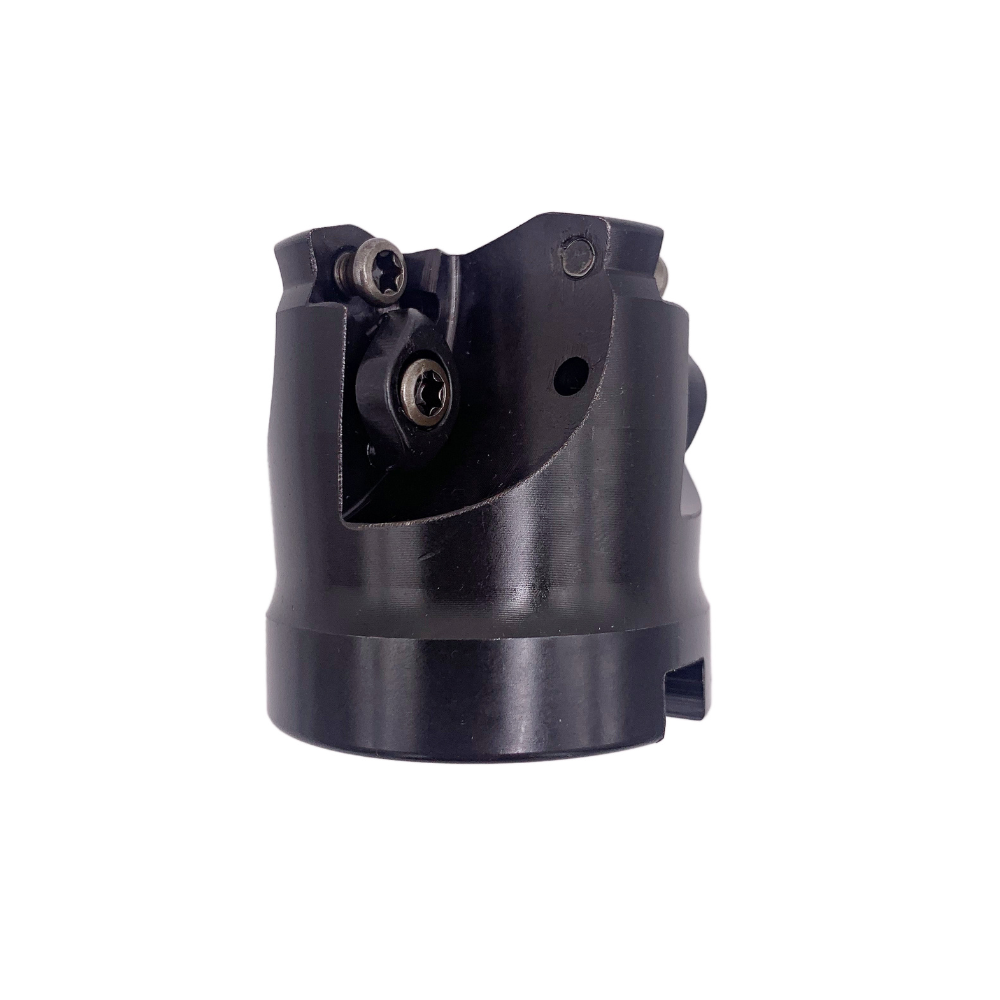

2” Diameter WDMT08-4T Face Mill
2” Diameter WDMT08-4T Face Mill
Regular price
$12.00
Regular price
$18.00
Sale price
$12.00
Unit price
/
per
Couldn't load pickup availability

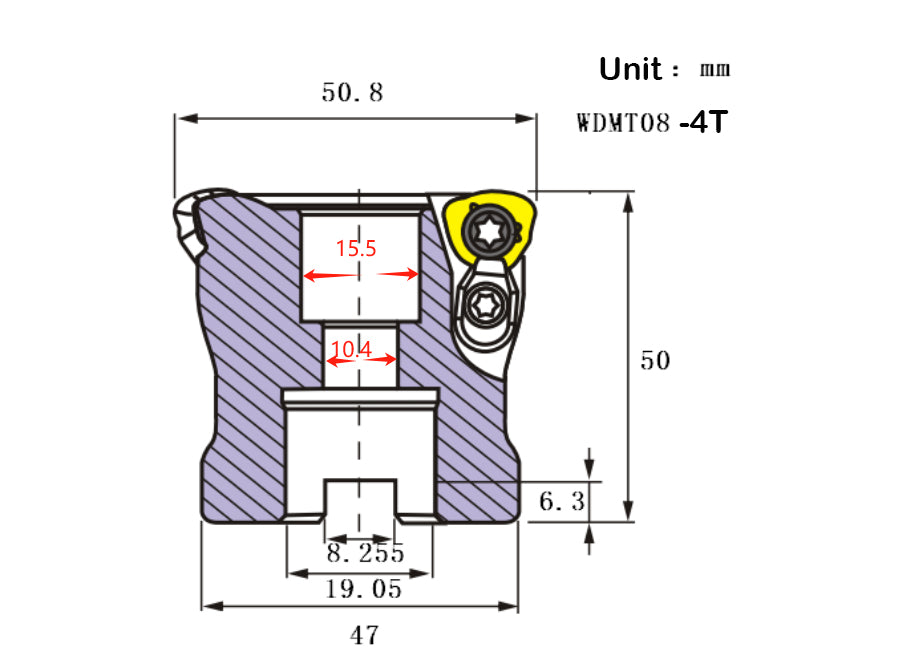

| 2” Diameter WDMT08-4T Face Mill Specifications | |
|---|---|
|
Cutting Diameter (Inch) |
2 |
| Cutting Diameter (mm) | 50.8 |
| Maximum Cutting Diameter (Inch) | 2 |
| Maximum Depth of Cut (Decimal Inch) | .0984 |
| Maximum Depth of Cut (mm) | 2.5 |
| Insert Shape | Triangle |
| Compatible Insert Size Code | WDMT0805 |
| Arbor Hole Diameter (Decimal Inch) | .75 |
| Arbor Hole Diameter (mm) | 19.05 |
| Keyway Width Decimal (Decimal Inch) | .325 |
| Keyway Width Decimal (mm) | 8.255 |
| Overall Height (Decimal Inch) | 1.968 |
| Overall Height (mm) | 50 |
| SHCS Head Diameter Clearance (Decimal Inch) | .61 |
| SHCS Head Diameter Clearance (mm) | 15.5 |
| SHCS Thread Diameter Clearance (Decimal Inch) | .41 |
| SHCS Thread Diameter Clearance (mm) | 10.4 |
| Primary Workpiece Material Code | P; M; K; S; H |
| Number of Cutter Inserts | 4 |
| Number of Cutter Flutes | 4 |
