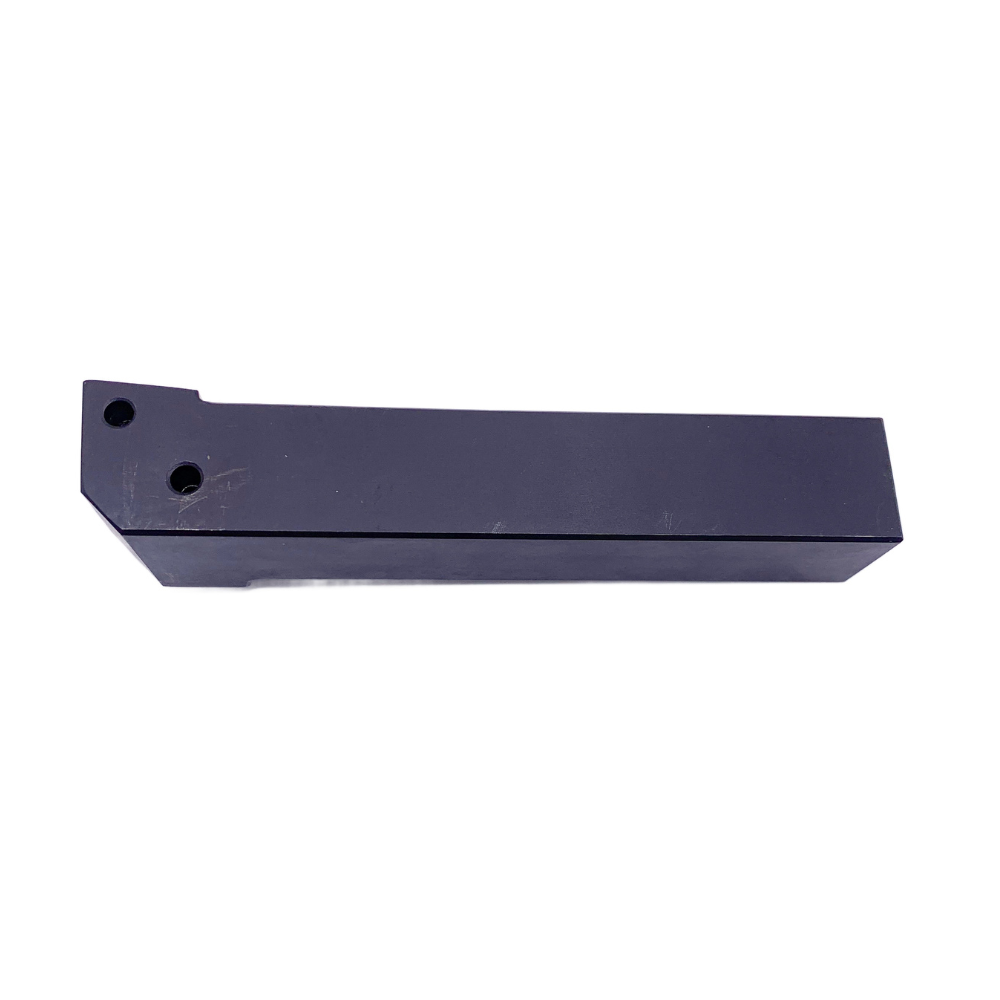

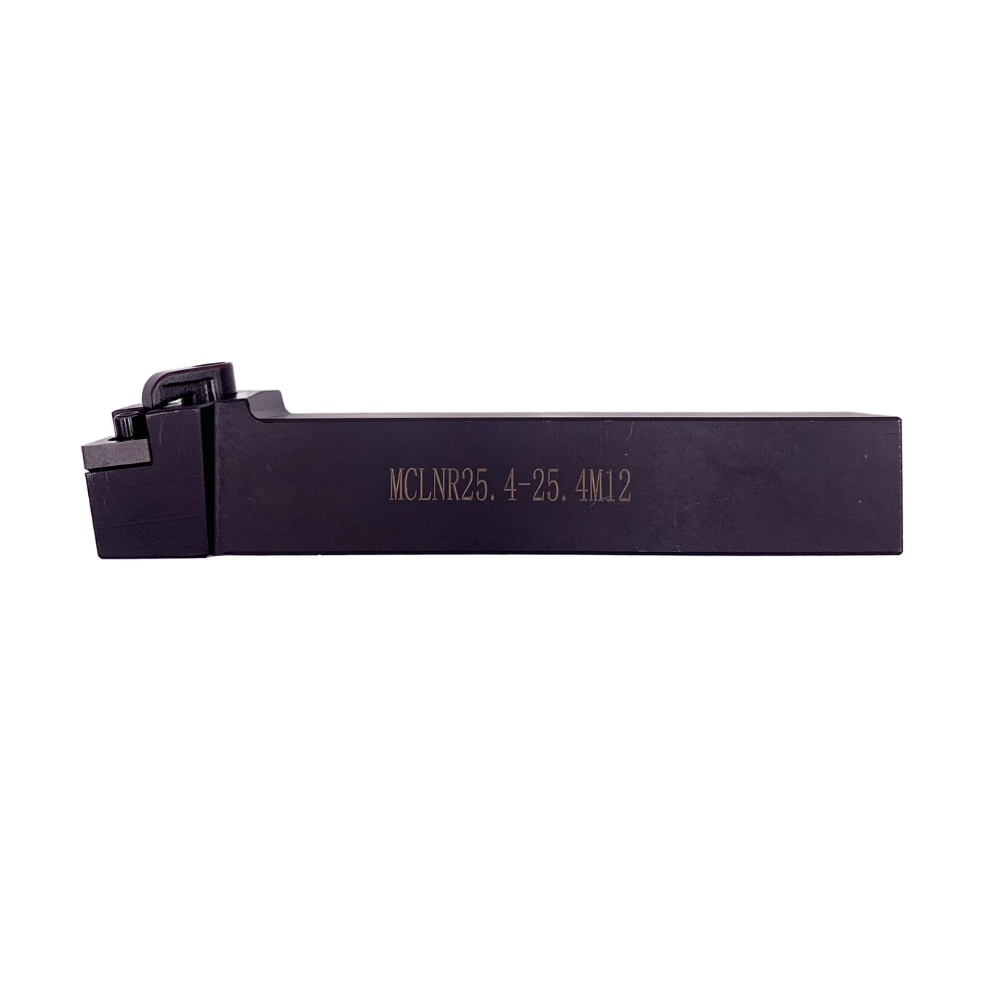

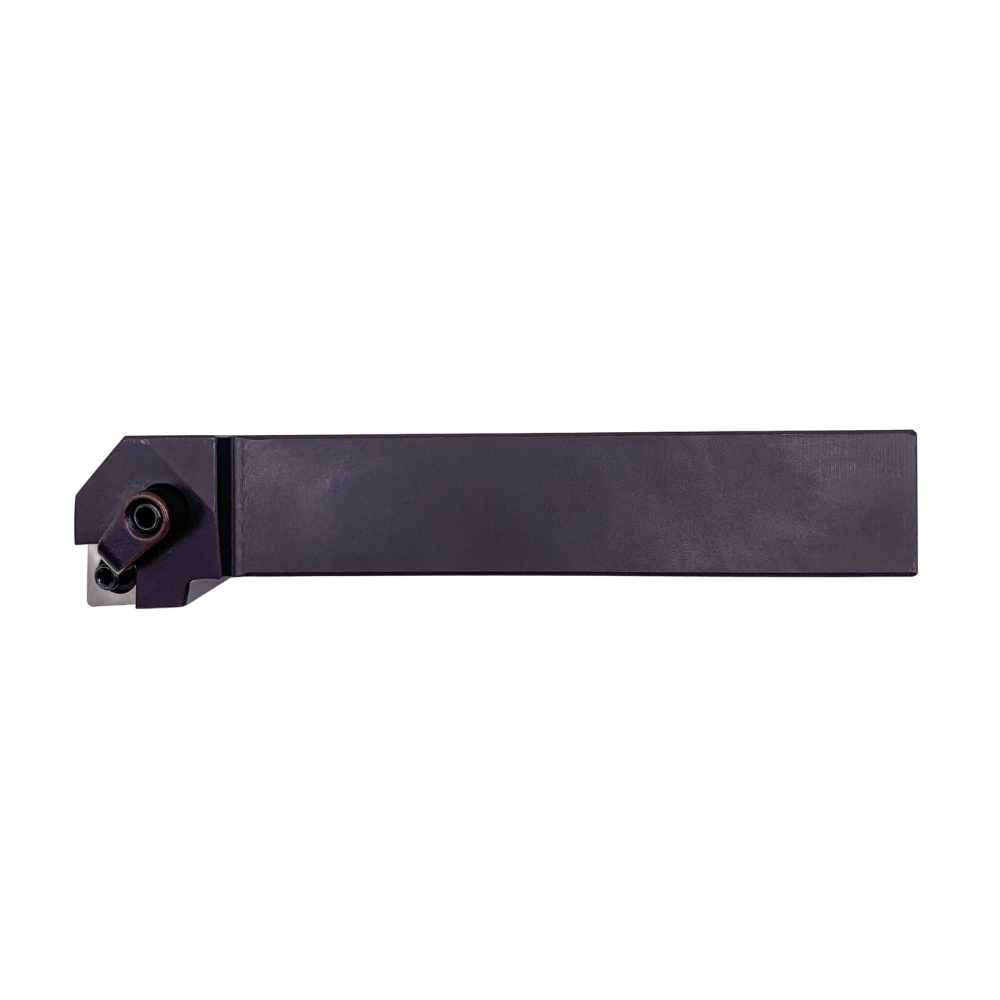

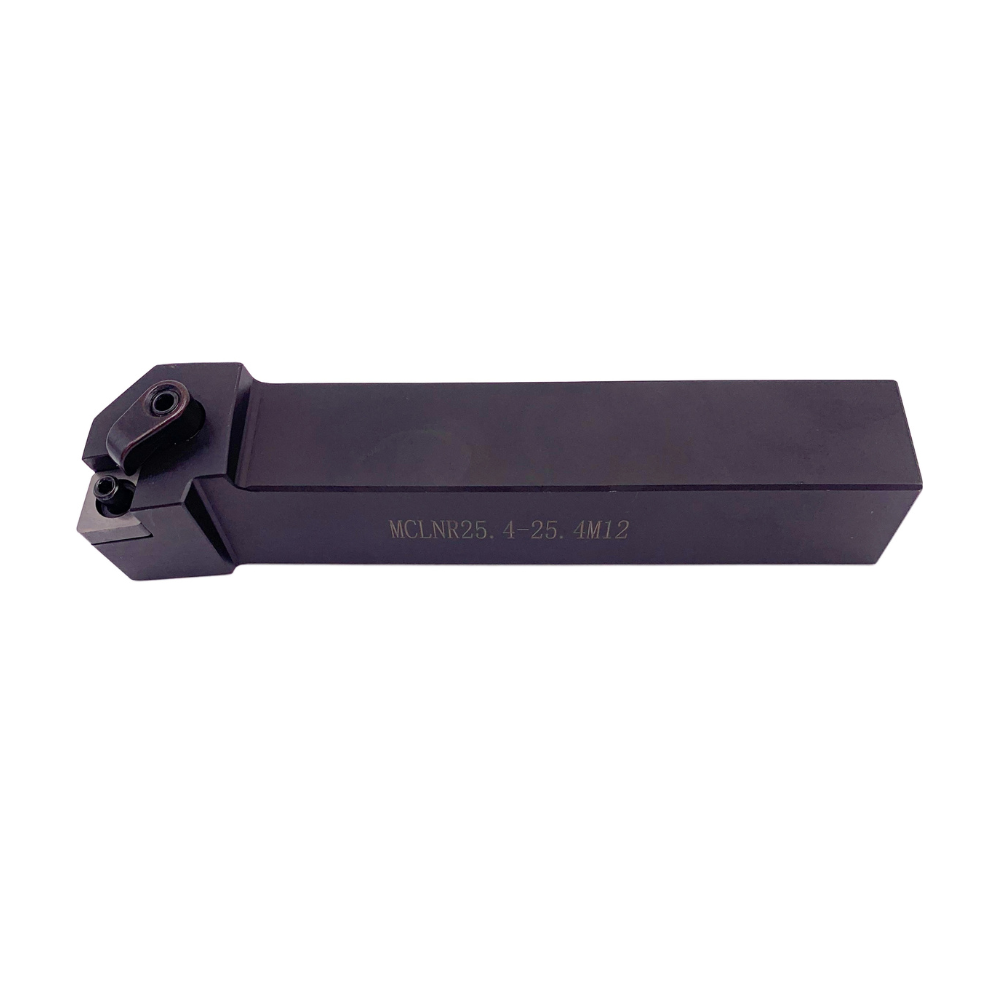

CNMG HOLDER MCLNR25.4-25.4M12

CNMG HOLDER MCLNR25.4-25.4M12

$75.00
$0.00 $75.00
Sale Sold out

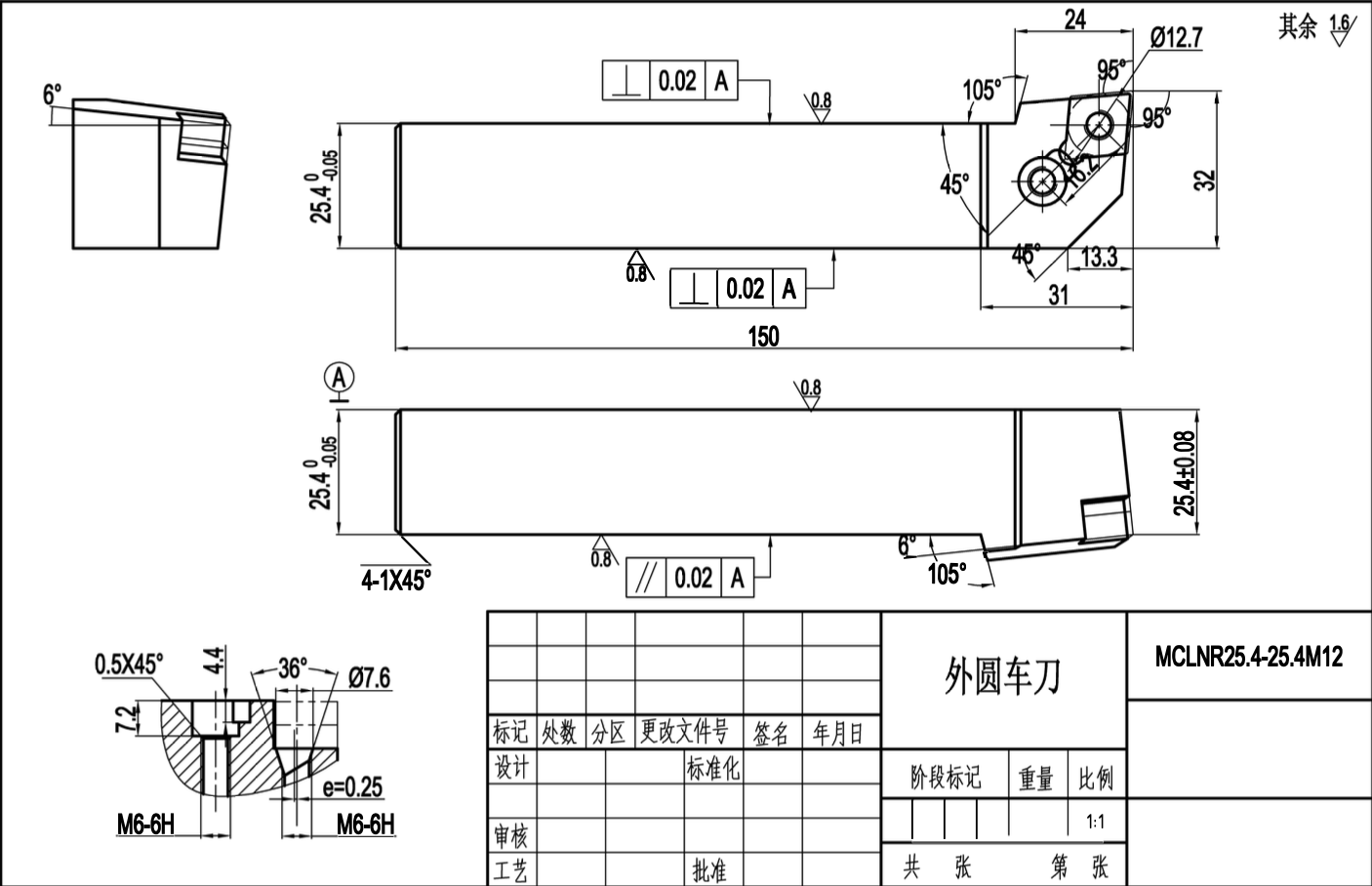

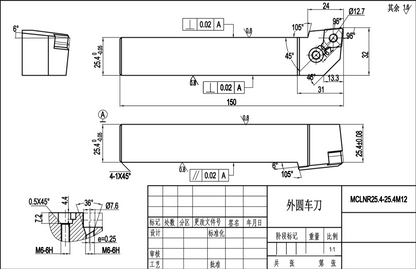

CNMG HOLDER MCLNR25.4-25.4M12 Specifications
Holder Style MCLN
Cutting Direction Right Hand
Tool Holder Material Steel
Insert Compatibility CN..43..
Inscribed Circle (Inch) 1/2
Insert Holding Method Screw: Clamp
Shank Width (Inch) 1
Shank Width (mm) 25.4
Shank Height (Inch) 1
Shank Height (mm) 25.4
Overall Length (Decimal Inch) 5.905
Overall Length (mm) 150
Head Length (Decimal Inch) 1.22
Head Length (mm) 31
Back of Bar to Cutting Edge (Decimal Inch) 1.259
Back of Bar to Cutting Edge (mm) 32
Height of Insert Tip to Bottom (Inch) 1
Coolant Through No
Rake Negative
