E3 Tooling

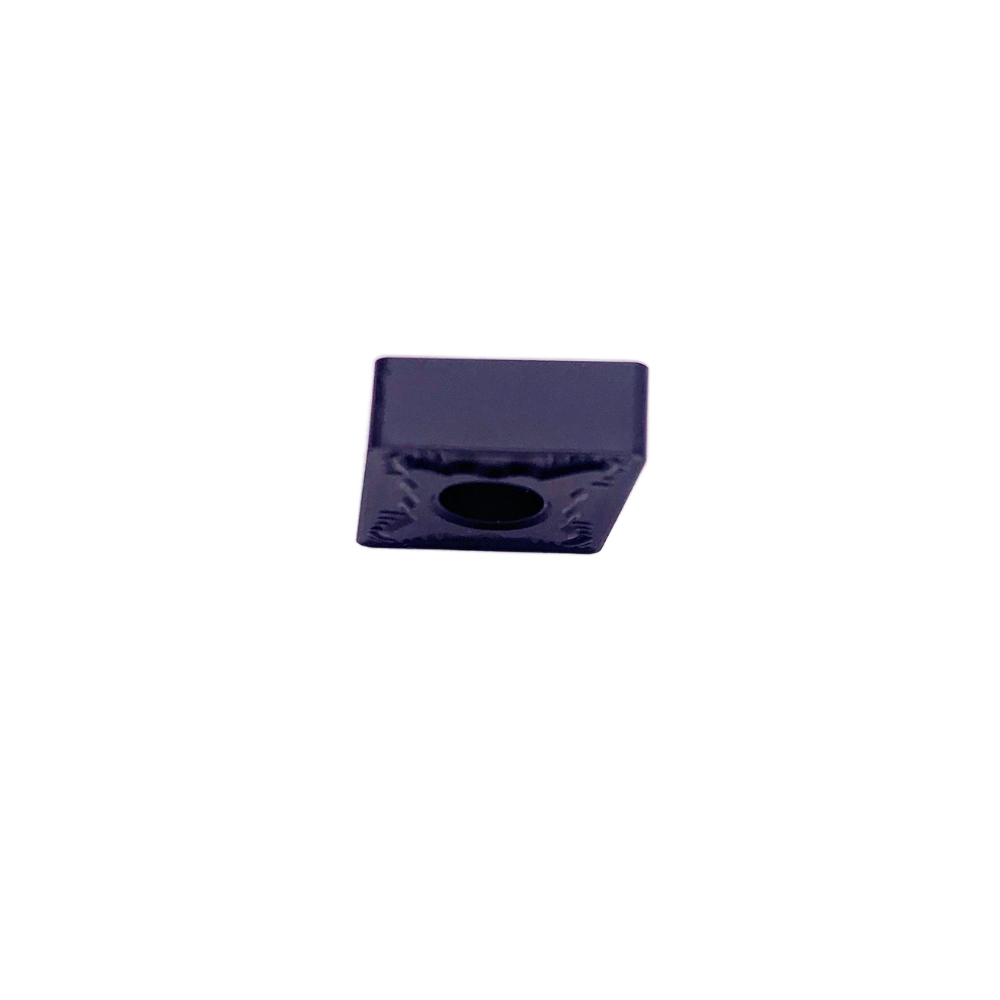

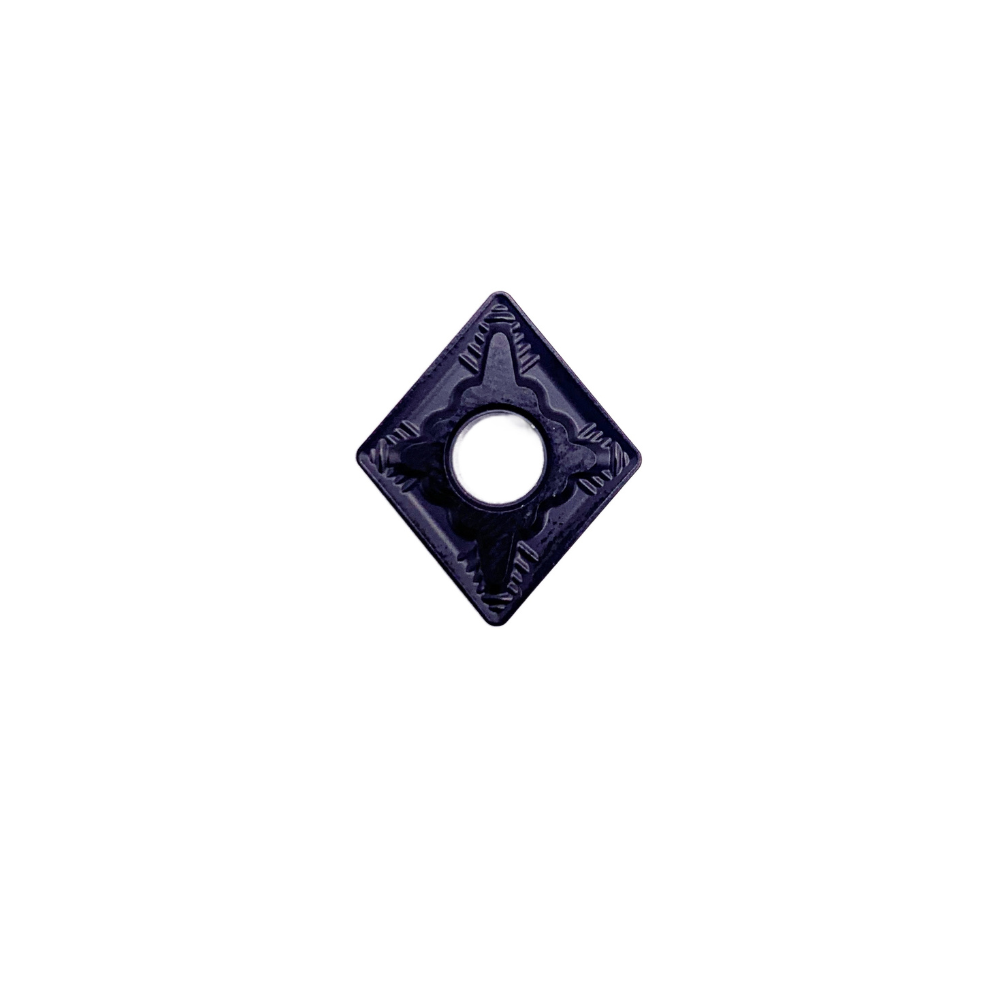

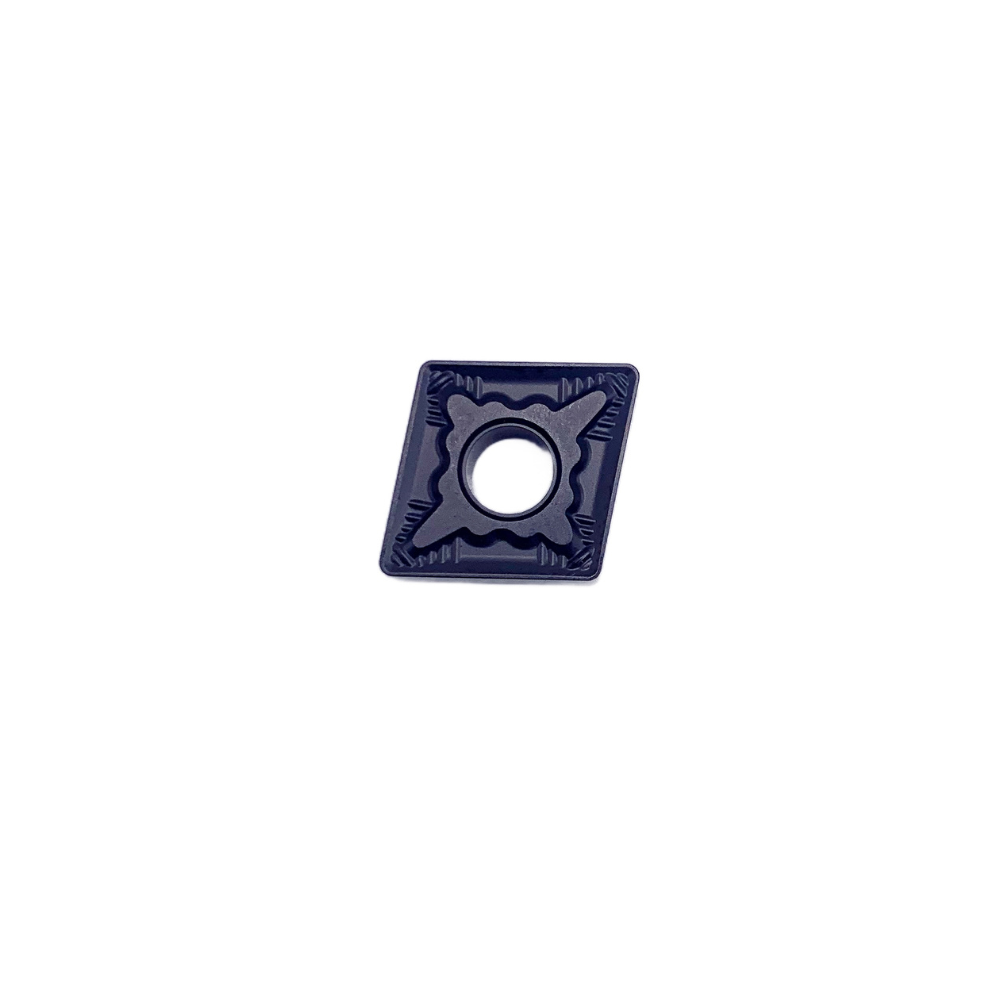

CNMG432 Lathe Insert

CNMG432 Lathe Insert

$6.25
$6.25
Sale Sold out
CNMG432 Specifications
Insert Style CNMG
Insert Size Code 432
Insert Shape Diamond 80°
Included Angle 80 Degree
Inscribed Circle (Inch) 1/2
Corner Radius (Decimal Inch) .03125
Corner Radius (Inch) 1/32
Insert Material Carbide
Coating/Finish PVD
Chip Breaker Yes
Relief Angle 0
Insert Thickness (Decimal Inch) .1875
Number of Cutting Edges 4
Insert Chape Code C
Hole Diameter (Decimal Inch) .2
Width (Inch) 1/2
Rake Negative
