E3 Tooling

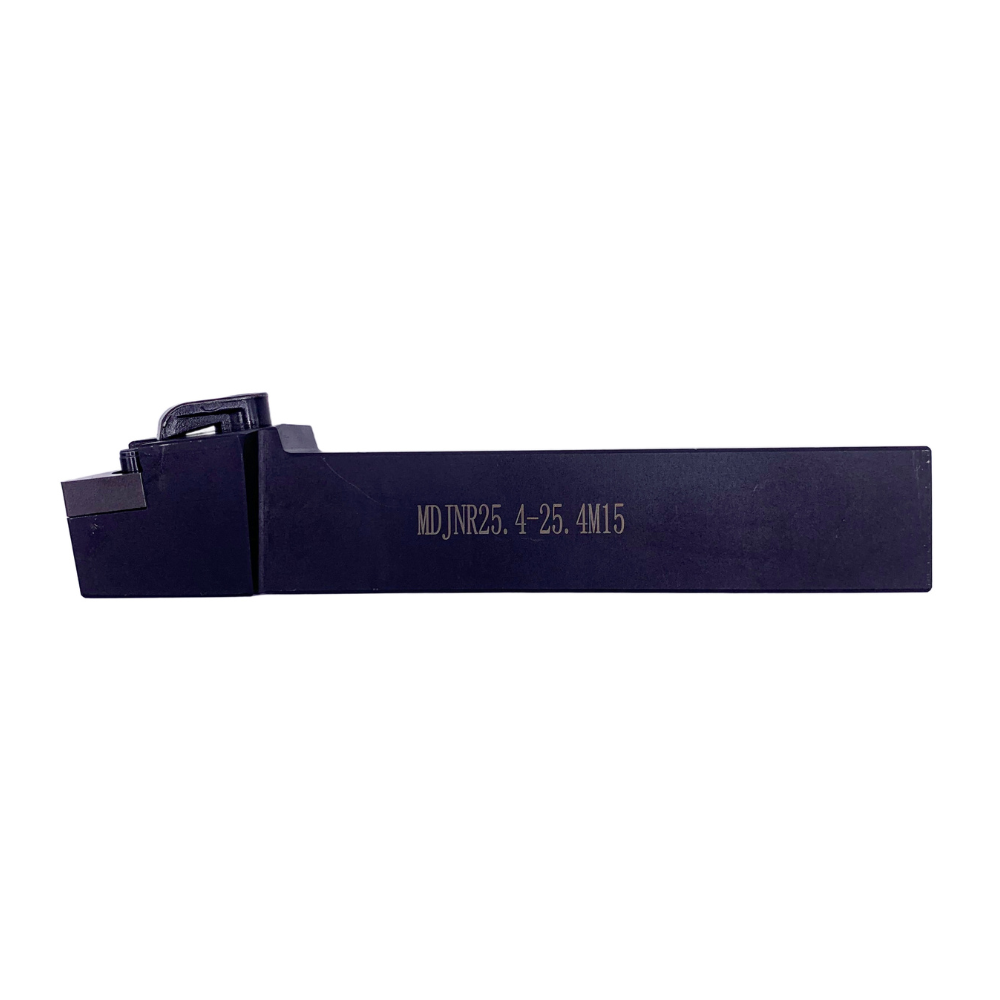

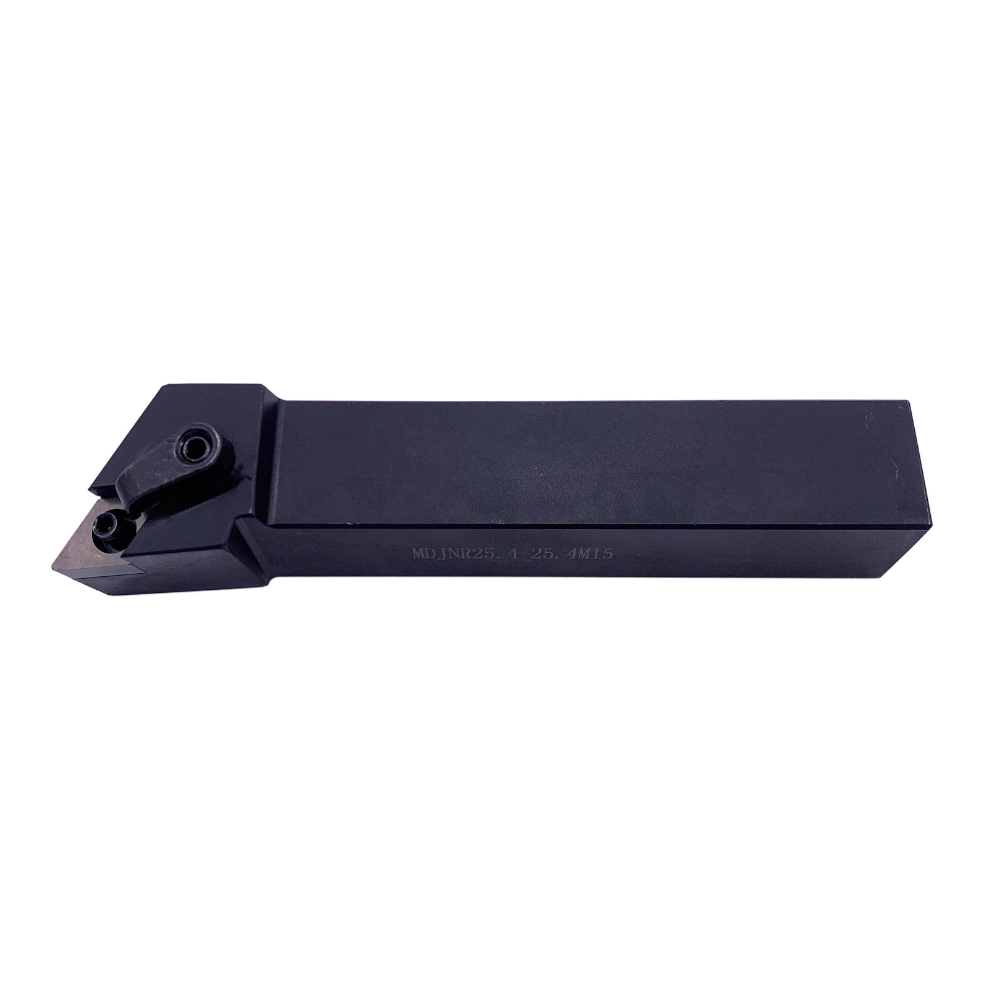

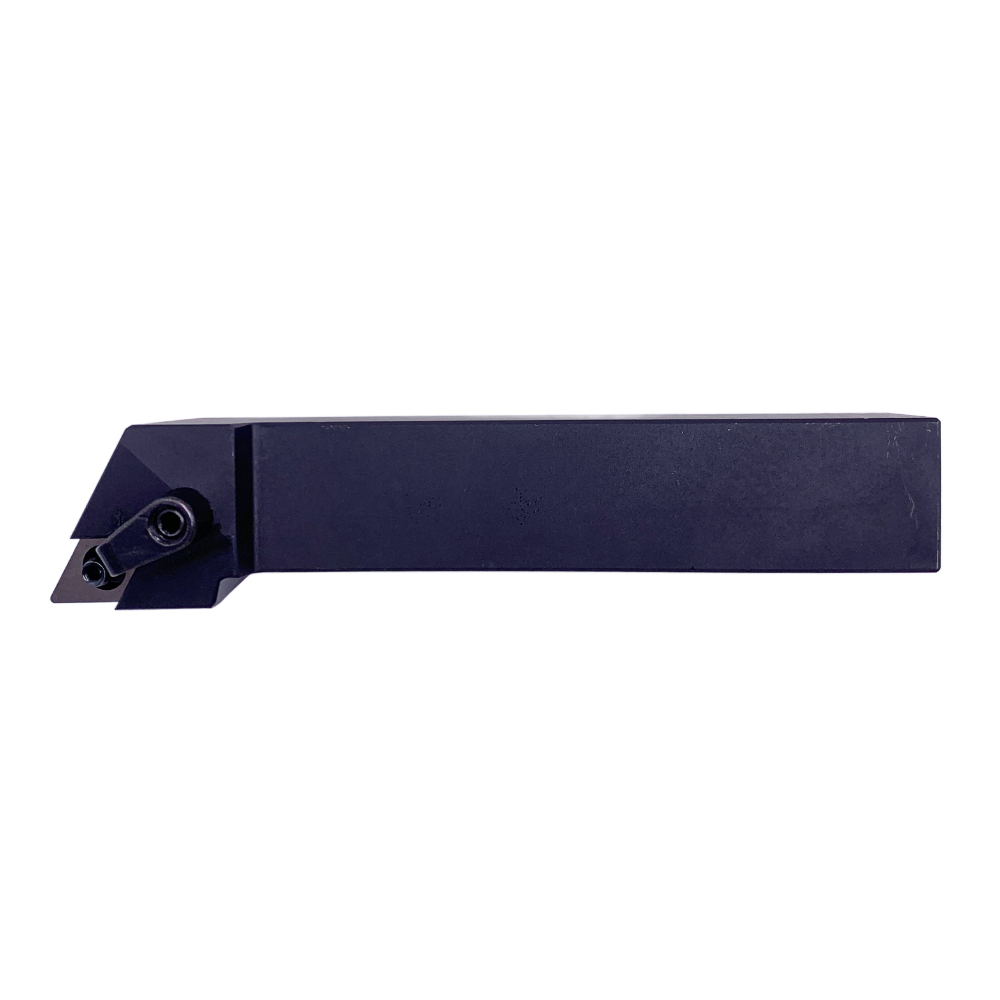

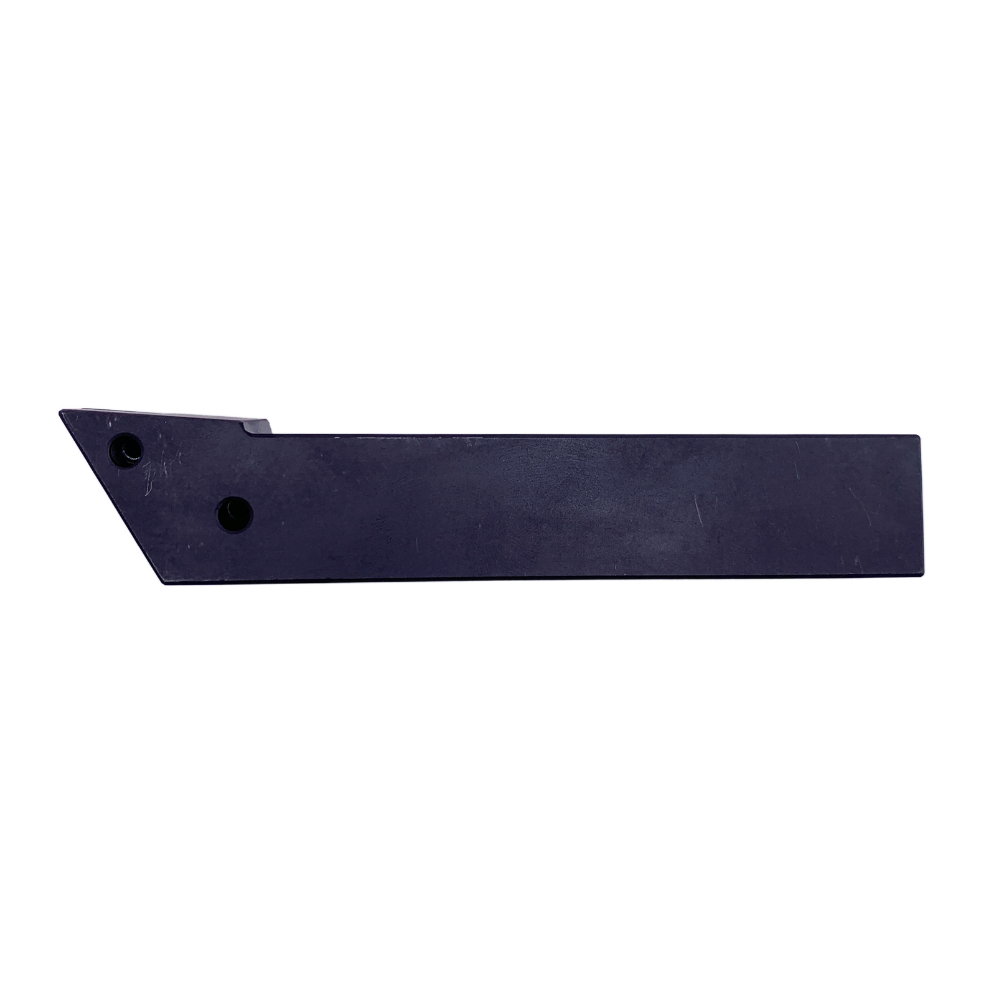

DNMG HOLDER MDJNR25.4-25.4M15
DNMG HOLDER MDJNR25.4-25.4M15
Regular price
$12.00
Regular price
$23.00
Sale price
$12.00
Unit price
/
per
Couldn't load pickup availability
| DNMG HOLDER MDJNR25.4-25.4M15 Specifications | |
|---|---|
| Holder Style | MDJN |
| Cutting Direction | Right Hand |
| Tool Holder Material | Steel |
| Insert Compatibility | CN..43.. |
| Inscribed Circle (Inch) | 1/2 |
| Insert Holding Method | Screw: Clamp |
| Shank Width (Inch) | 1 |
| Shank Width (mm) | 25.4 |
| Shank Height (Inch) | 1 |
| Shank Height (mm) | 25.4 |
| Overall Length (Decimal Inch) | 5.905 |
| Overall Length (mm) | 150 |
| Head Length (Decimal Inch) | 1.496 |
| Head Length (mm) | 38 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.259 |
| Back of Bar to Cutting Edge (mm) | 32 |
| Height of Insert Tip to Bottom (Inch) | 1 |
| Coolant Through | No |
| Rake | Negative |
