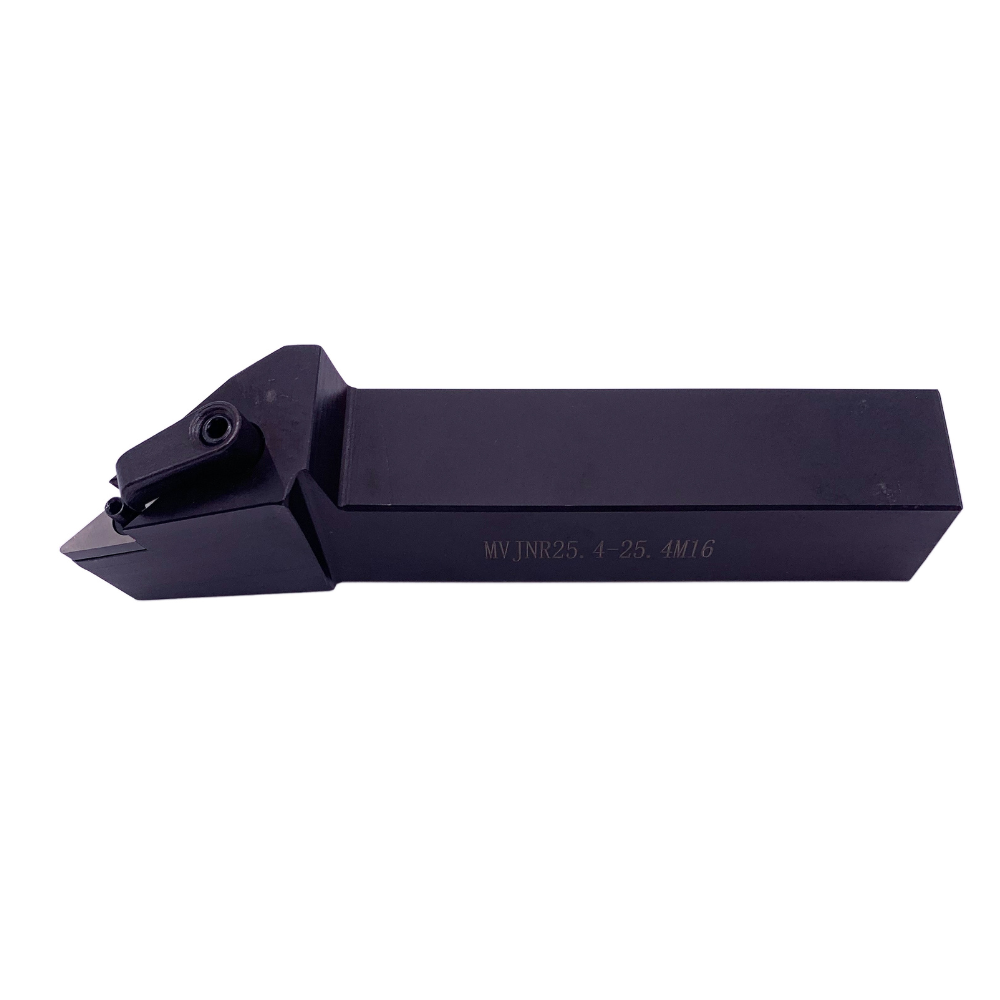

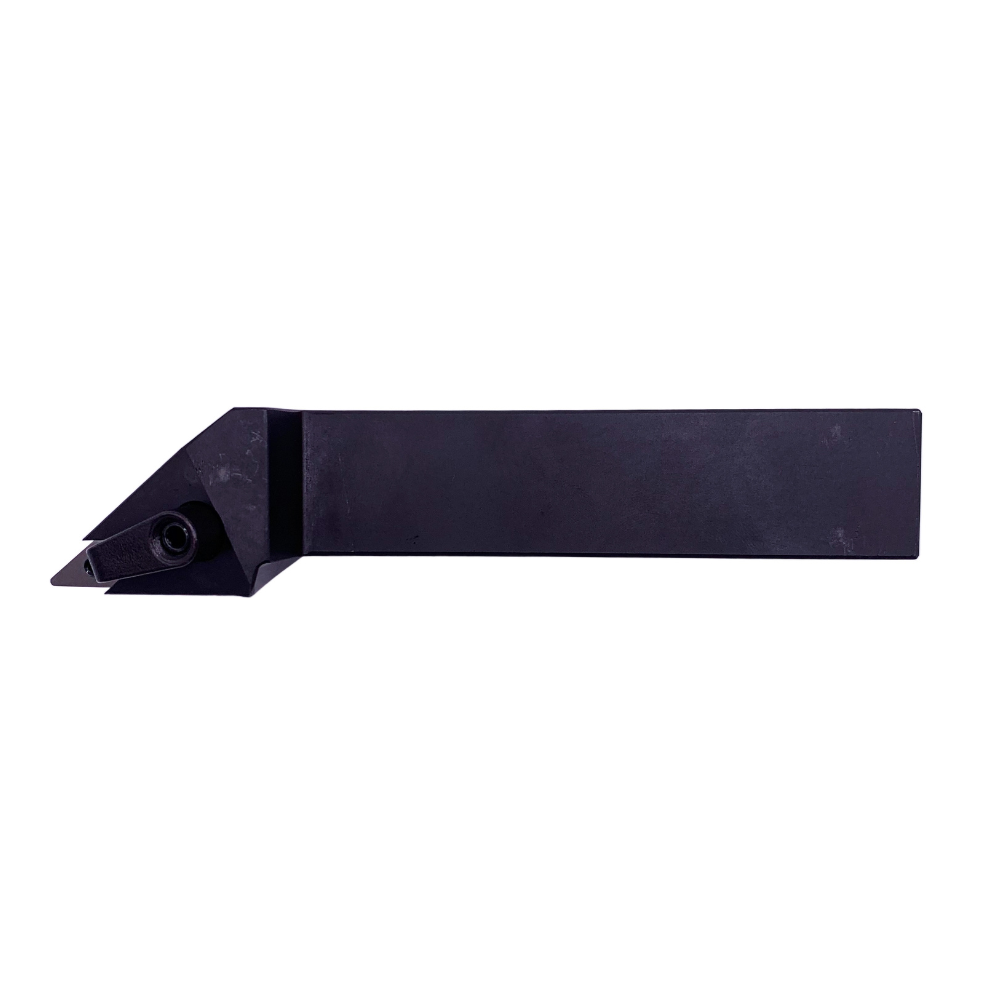

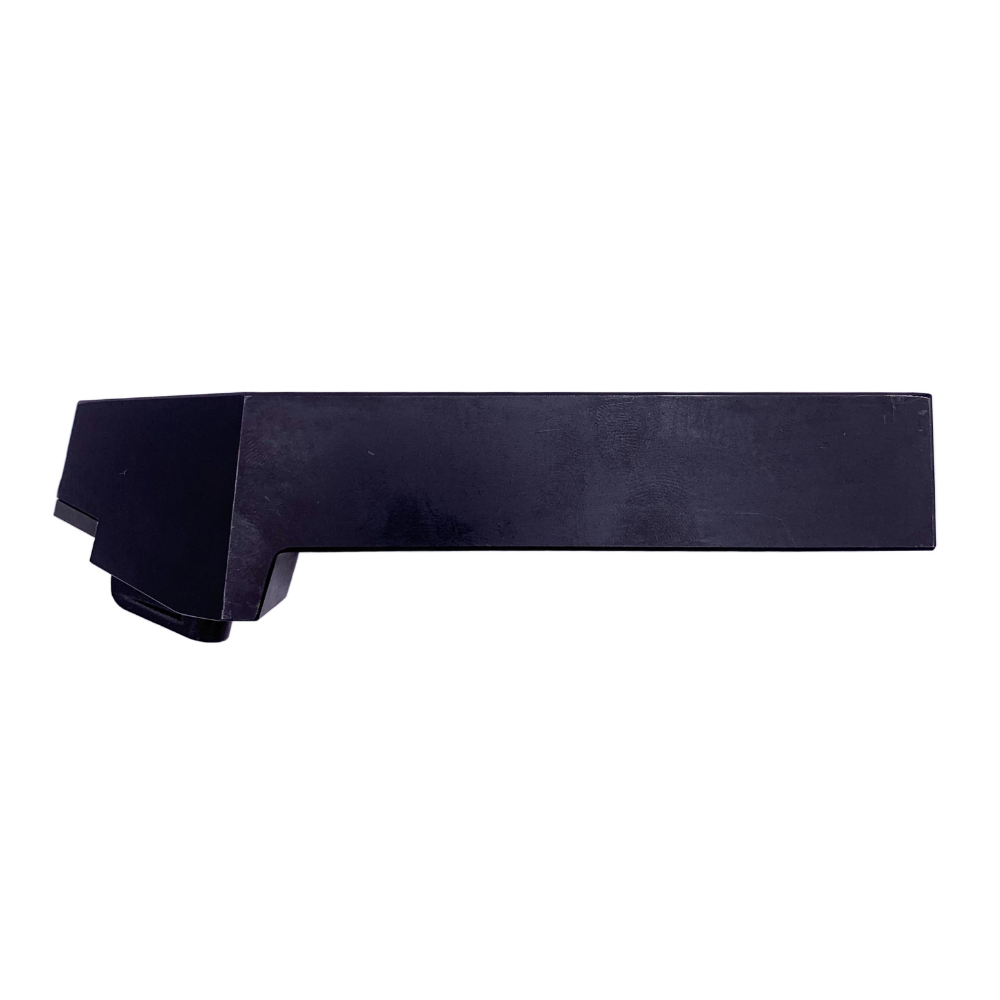

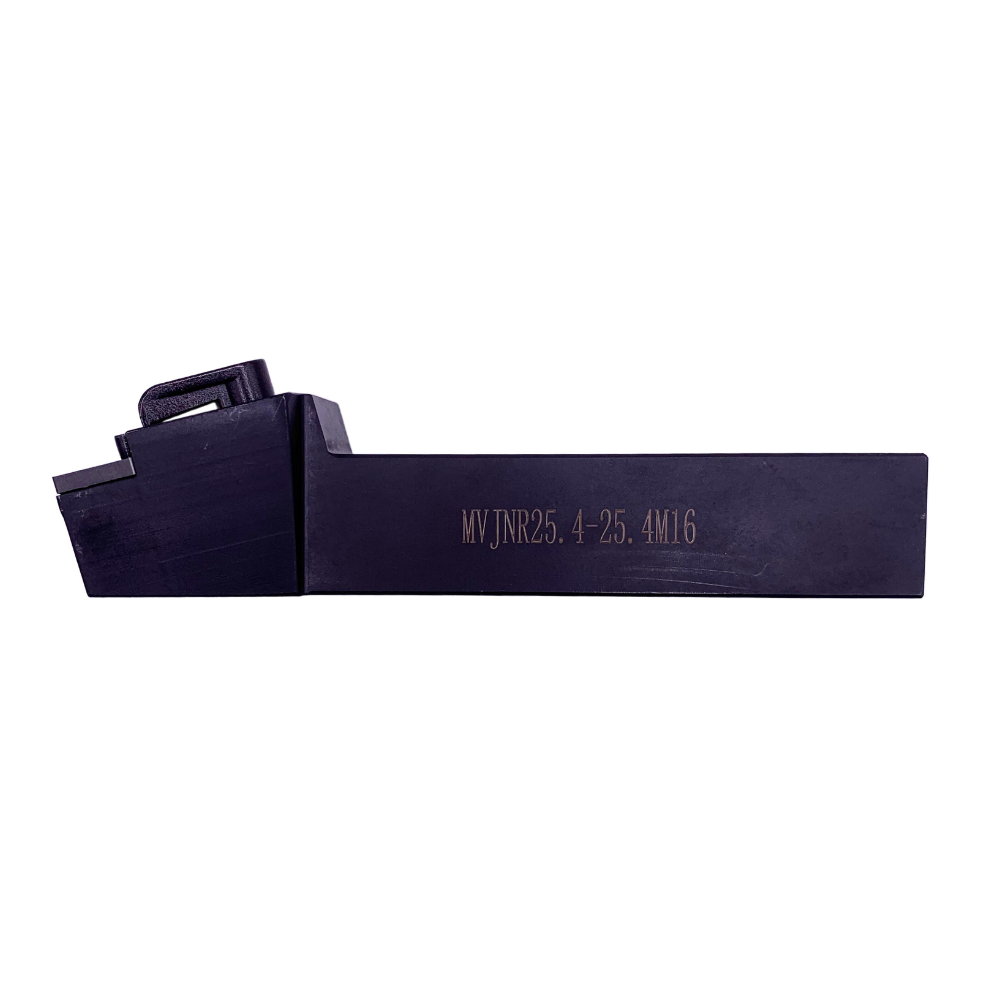

VNMG HOLDER MVJNR25.4-25.4M16

VNMG HOLDER MVJNR25.4-25.4M16

$75.00
$0.00 $75.00
Sale Sold out

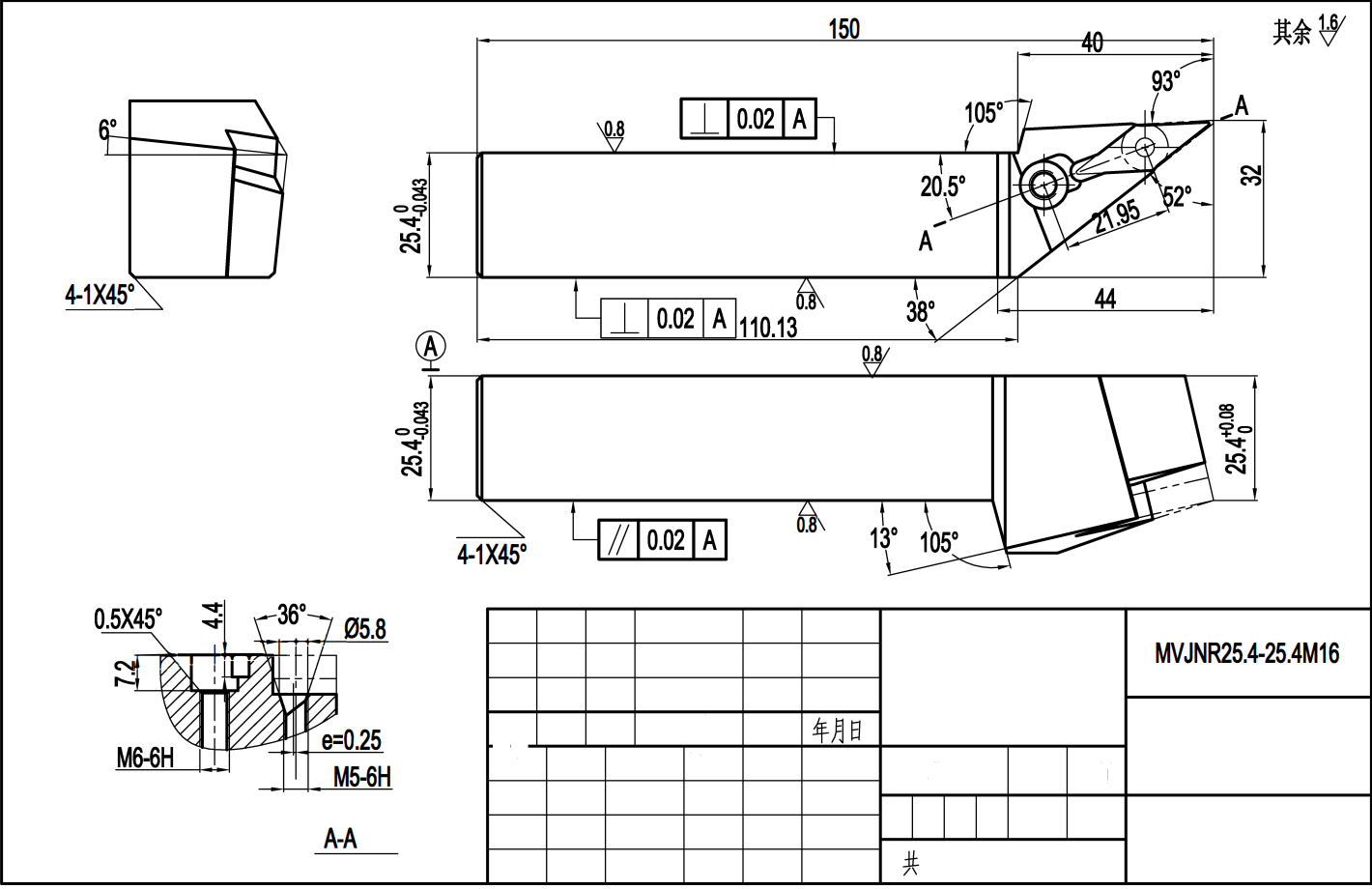

VNMG HOLDER MVJNR25.4-25.4M15 Specifications
Holder Style MVJN
Cutting Direction Right Hand
Tool Holder Material Steel
Insert Compatibility VN..1604..
Inscribed Circle (Inch) 3/8
Insert Holding Method Screw: Clamp
Shank Width (Inch) 1
Shank Width (mm) 25.4
Shank Height (Inch) 1
Shank Height (mm) 25.4
Overall Length (Decimal Inch) 5.905
Overall Length (mm) 150
Head Length (Decimal Inch) 1.732
Head Length (mm) 44
Back of Bar to Cutting Edge (Decimal Inch) 1.259
Back of Bar to Cutting Edge (mm) 32
Height of Insert Tip to Bottom (Inch) 1
Coolant Through No
Rake Negative
