E3 Tooling

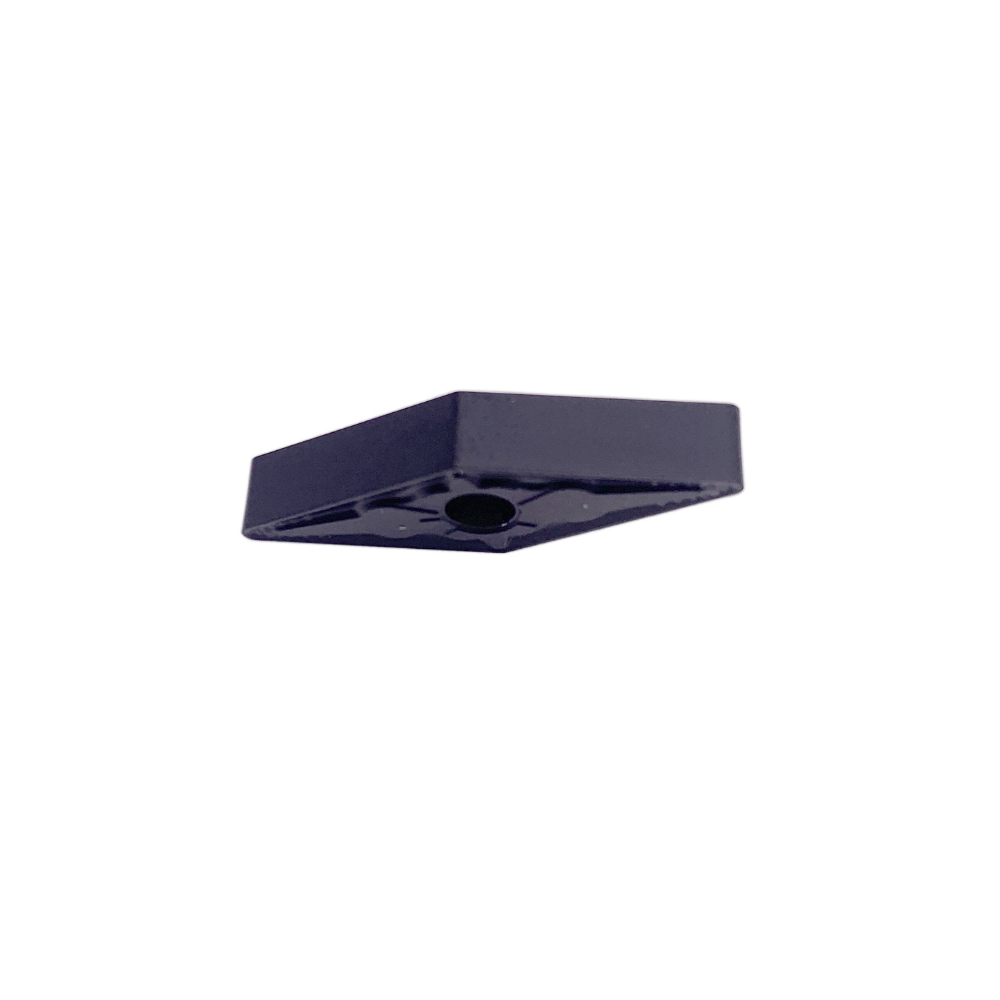

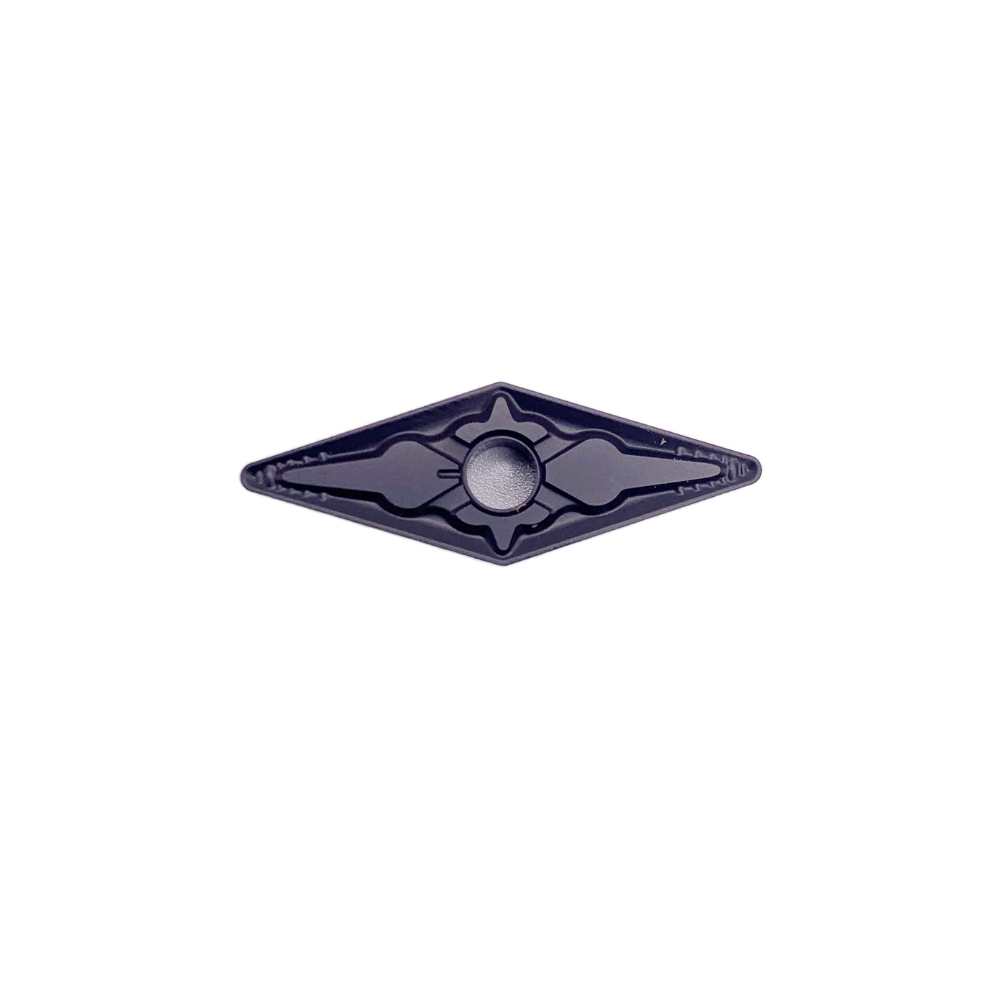

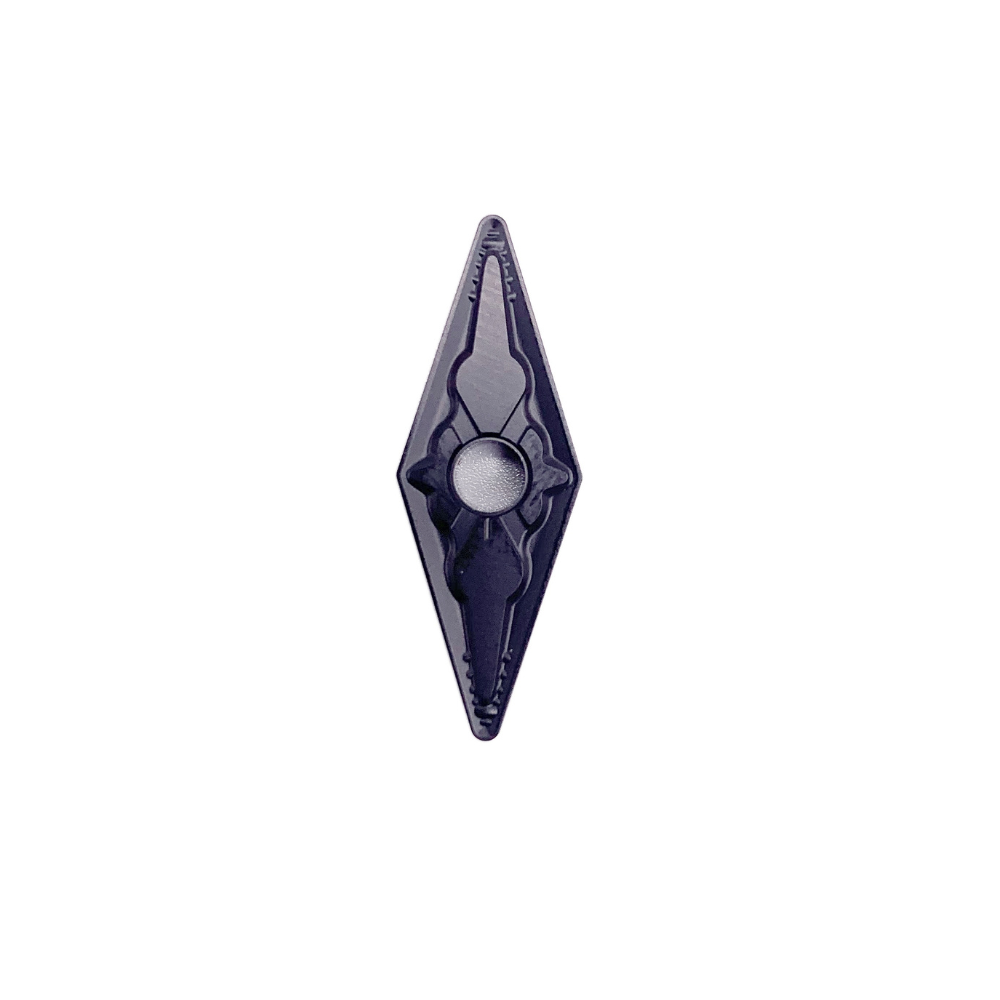

VNMG332 Lathe Insert
VNMG332 Lathe Insert
Regular price
$12.00
Regular price
$23.00
Sale price
$12.00
Unit price
/
per
Couldn't load pickup availability
| VNMG332 Specifications | |
|---|---|
| Insert Style | VNMG |
| Insert Size Code | 332 |
| Insert Shape | Diamond 35° |
| Included Angle | 35 Degree |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | .03125 |
| Corner Radius (Inch) | 1/32 |
| Insert Material | Carbide |
| Coating/Finish | PVD |
| Chip Breaker | Yes |
| Relief Angle | 0 |
| Insert Thickness (Decimal Inch) | .1875 |
| Number of Cutting Edges | 4 |
| Insert Chape Code | V |
| Hole Diameter (Decimal Inch) | .146 |
| Width (Inch) | 3/8 |
| Rake | Negative |
